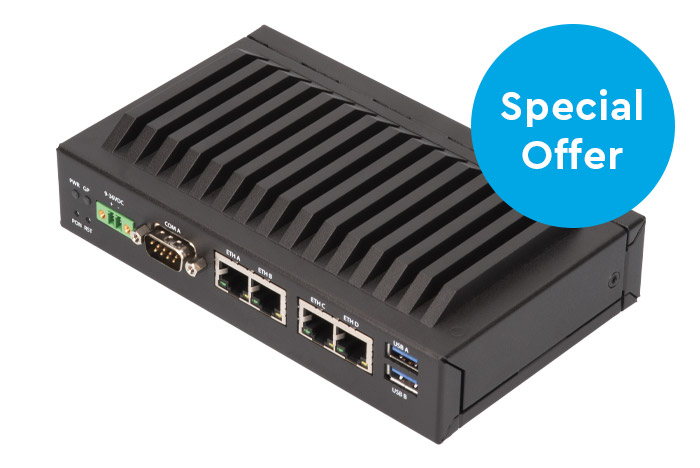

MBOX-ADV-AA 298647.0103

BoxPC/Gateway based on Quad-Core Intel Atom® Processor

4 independant Gigabit Ethernet ports (Intel i210, TSN capable)
AES-NI support, fTPM with TPM 2.0 support within the CPU
DP++ for high resolution monitors
+ extra USB port for easy HMI / Touch-Panel connection
RS-232 port e.g. for Linux Console
32 GB eMMC; extandable by M.2 2242 SATA SSD
Very compact, fan-less design
Long-term available

Perfect fit for IoT Gateways, Security/Surveillance, Optical Inspection and Real-time-Control (e.g. OPC-UA TSN applications).

>> Product Homepage / Datasheet

399,00 €*

TECHNISCHE SPEZIFIKATIONEN

Produktart:

BoxPC

Systemarchitektur:

Leistungsklasse :

Intel Atom

Prozessor Name:

E3950

Prozessor Hersteller:

INTEL

Formfaktor:

TQ160100

Features:

IPC with

Intel Atom E3950 (4x 1.6/2.0GHz, 2MB Cache, 12W TDP)
4GB DDR3L
32 GB eMMC

Configuration:

M.2 2242 slot (Key B+M): free
Software: not pre-installed

Front side:
4x Gigabit Ethernet (Intel i210)
2x USB 3.0, RS-232
Status-LED Power button, Reset button
9-30V DC In (screwable)

Back side:
DisplayPort (DP++ for DP and HDMI monitors), USB 2.0

Internal:
1x M.2 2242 slot (Key: B+M) (SATA + USB)

Dimensions: 170 x 103 x 42 mm

Operating Temp.: -20/+60°C (with free convection)

AC/DC power adapter: not included
(Recommended accessories: TRG30R120V-62E13)

Support

Umfangreiche Informationen aus dem Softwarebereich wie BSP-Dokumentationen, Tutorials, FAQs sowie Beispielcodes stehen Ihnen in unserem Support Wiki zur Verfügung.
